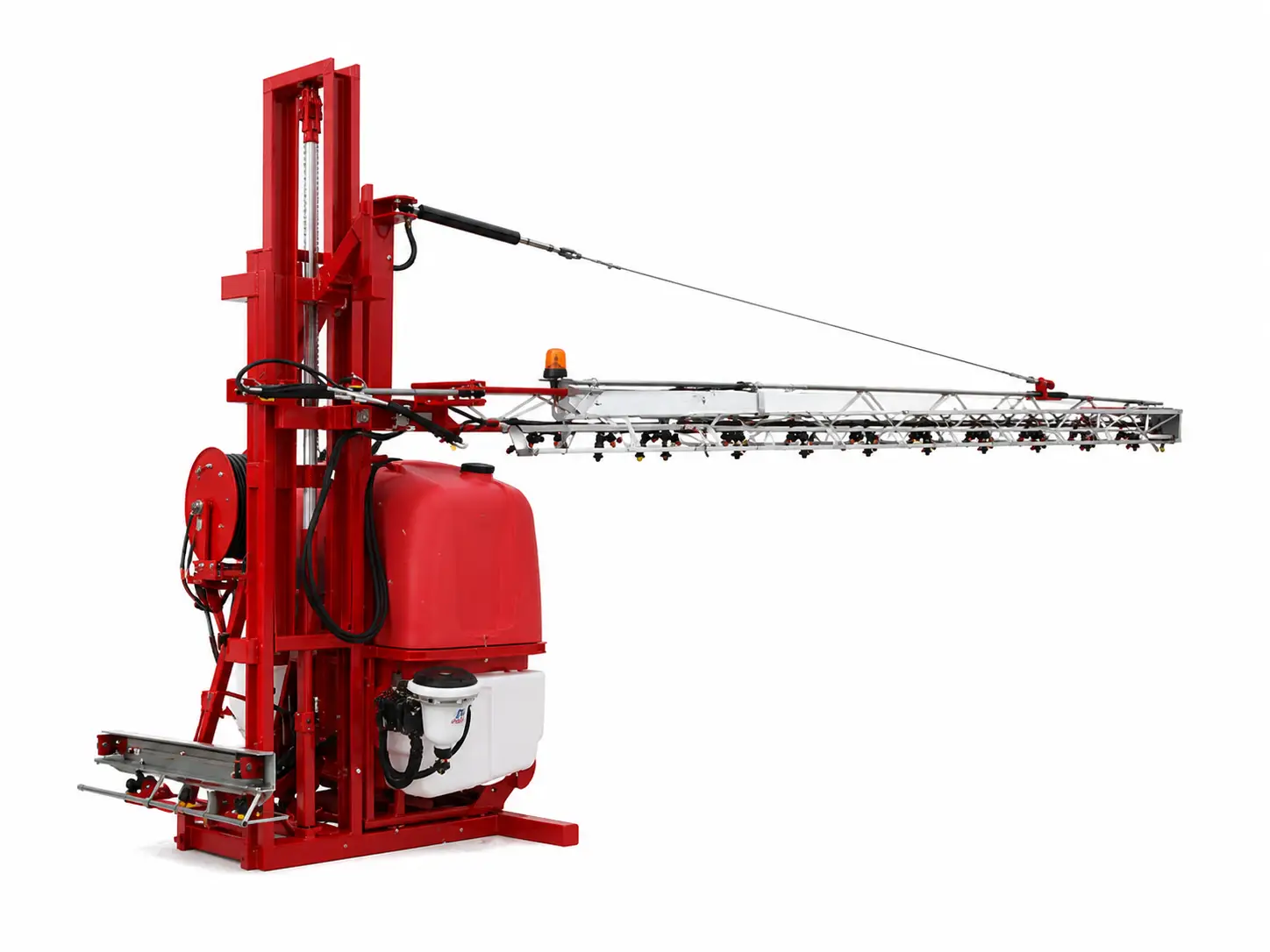

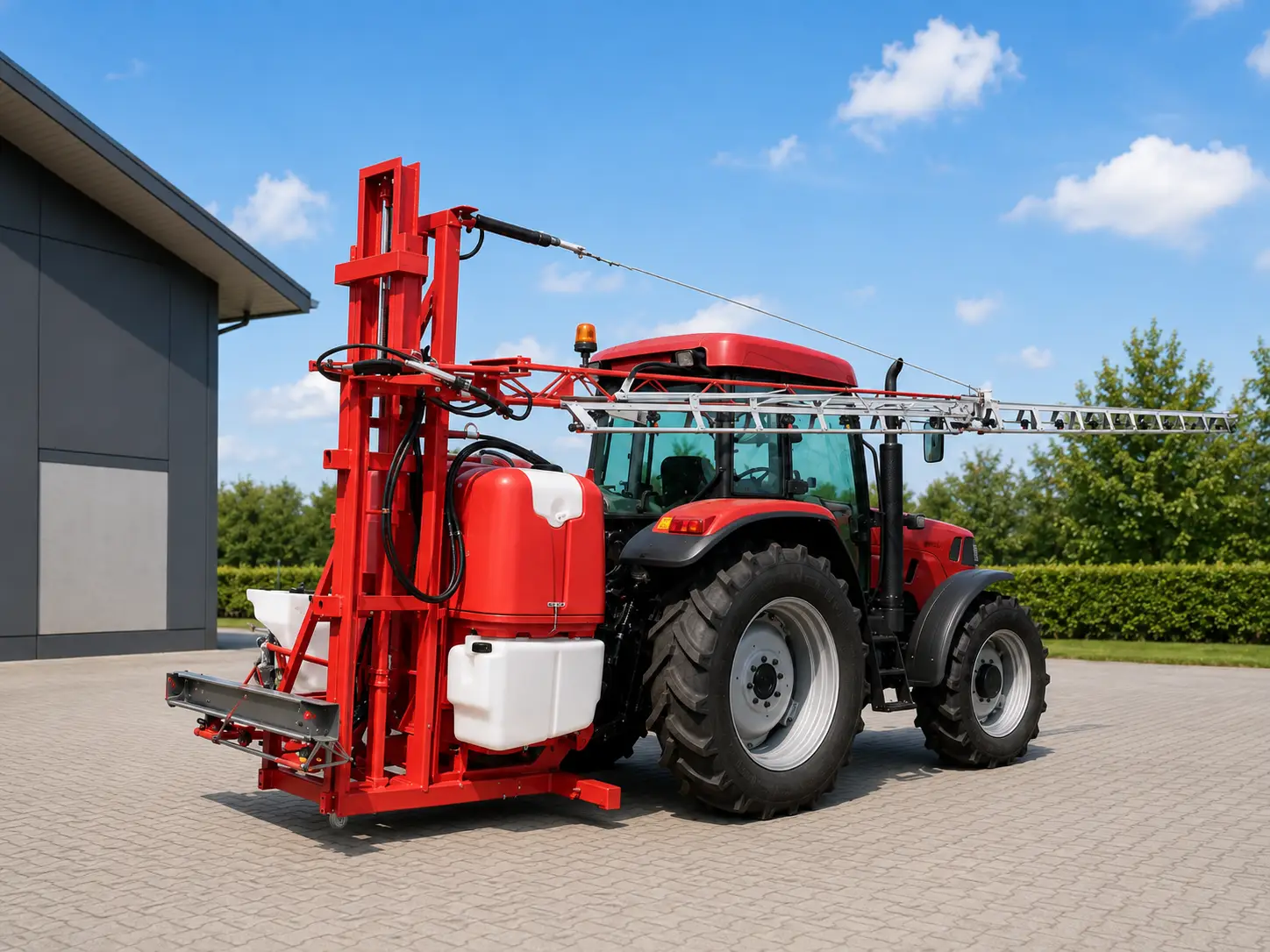

ASM Single-Arm Spray Boom
Type: Single-arm spray boom

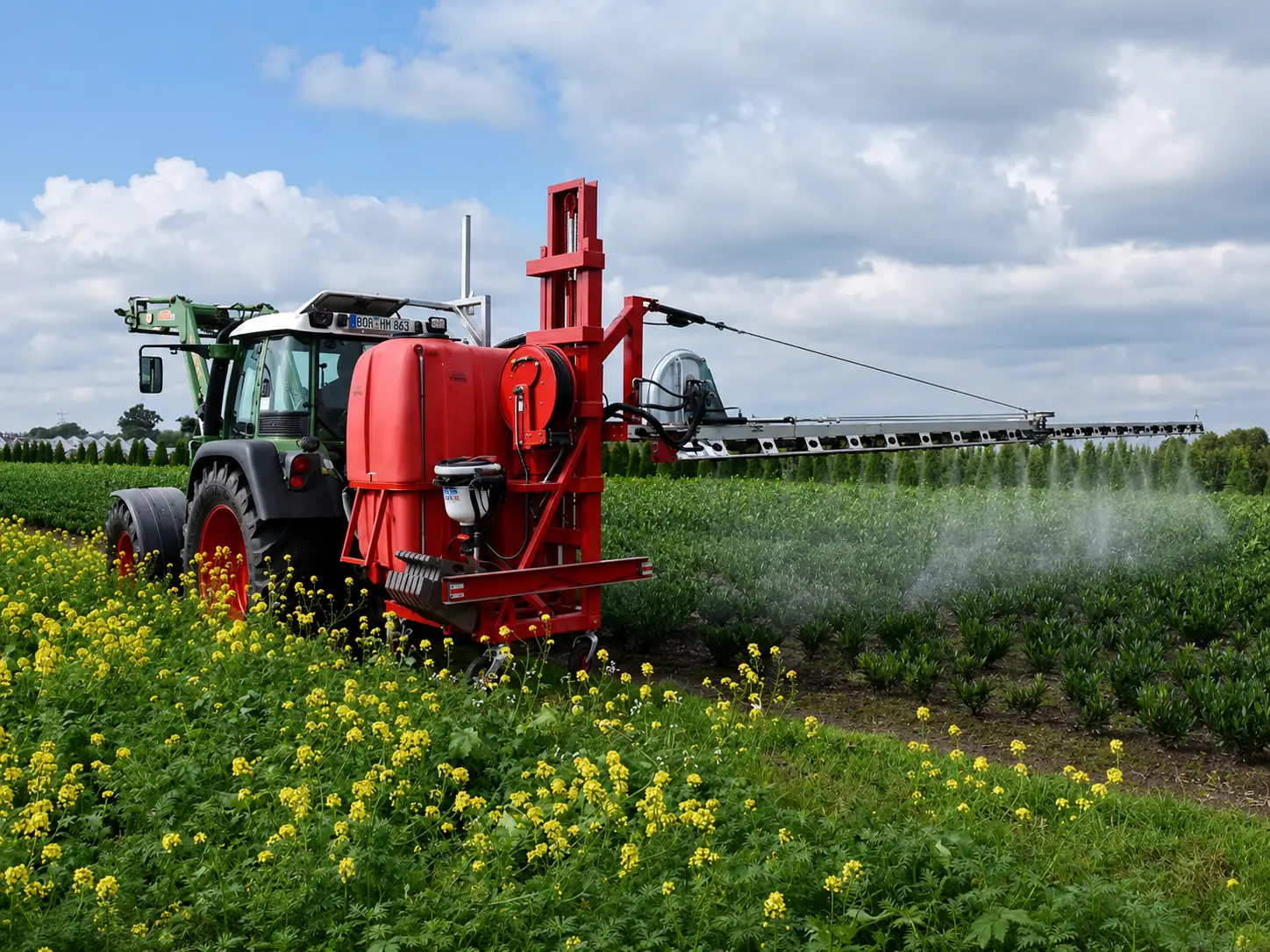

The ASM single-arm spray boom is designed for efficient spraying in Christmas tree plantations and similar operations where precise row and furrow treatment is important.
The sprayer is equipped with a 1,000-liter tank, a clean water tank, a rinse tank, a chemical tank, a hose reel, and an EC control unit. It can be supplied with optional standard nozzles and is equipped with a rear boom for spraying in tramlines.
The spray boom is made of aluminum and can operate at spray widths of 5, 10, or 12 meters. The boom can also be tilted when driving over hilly terrain, making this solution well-suited for a variety of field conditions.
The sprayer can operate at spray widths of 5, 10, or 12 meters, allowing it to be adapted to various tasks and row spacings.
The machine is equipped with a 1,000-liter tank, as well as a clean water tank, a rinse tank, and a chemical tank.
The mounted rear boom makes it possible to create spray patterns and supports a more efficient workflow.
The spray boom is made of aluminum and can be tilted when driving over hilly terrain.
| Tank |
|---|
| 1,000 liters |
| Max. spray height |
|---|
| 3.3 m |
| Boom Length |
|---|
| 2 x 5 m |
| Spray width |
|---|
| 5, 10, or 12 m |
| Spray marks |
|---|
| 2 m spray width |
| Materials |
|---|
| Aluminum |
| Fixture |
|---|
| EC fixture |
Standard nozzles
Optional: 2 sets of standard nozzles
Air-assisted spraying
Can be mounted with a fan
Ready for more efficient spraying in Christmas tree plantations?
The ASM single-arm spray boom offers a flexible solution for spraying in Christmas tree plantations and similar areas. Contact Egedal Maskinfabrik for more information about options, equipment, and customization.
