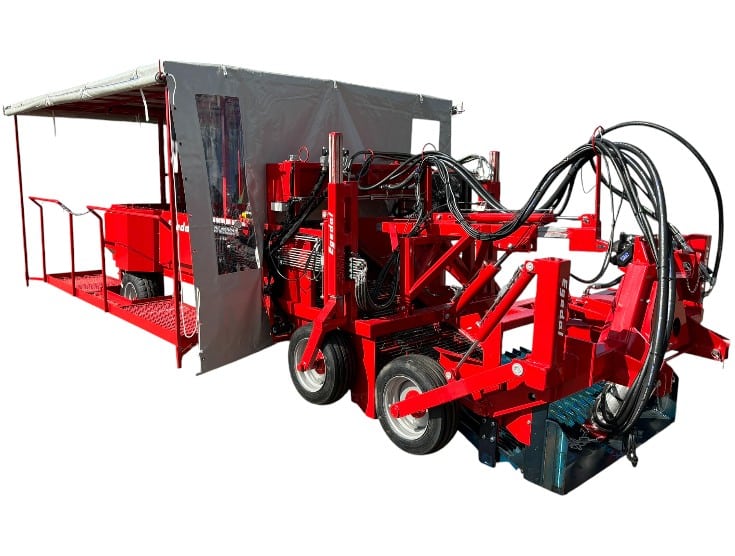

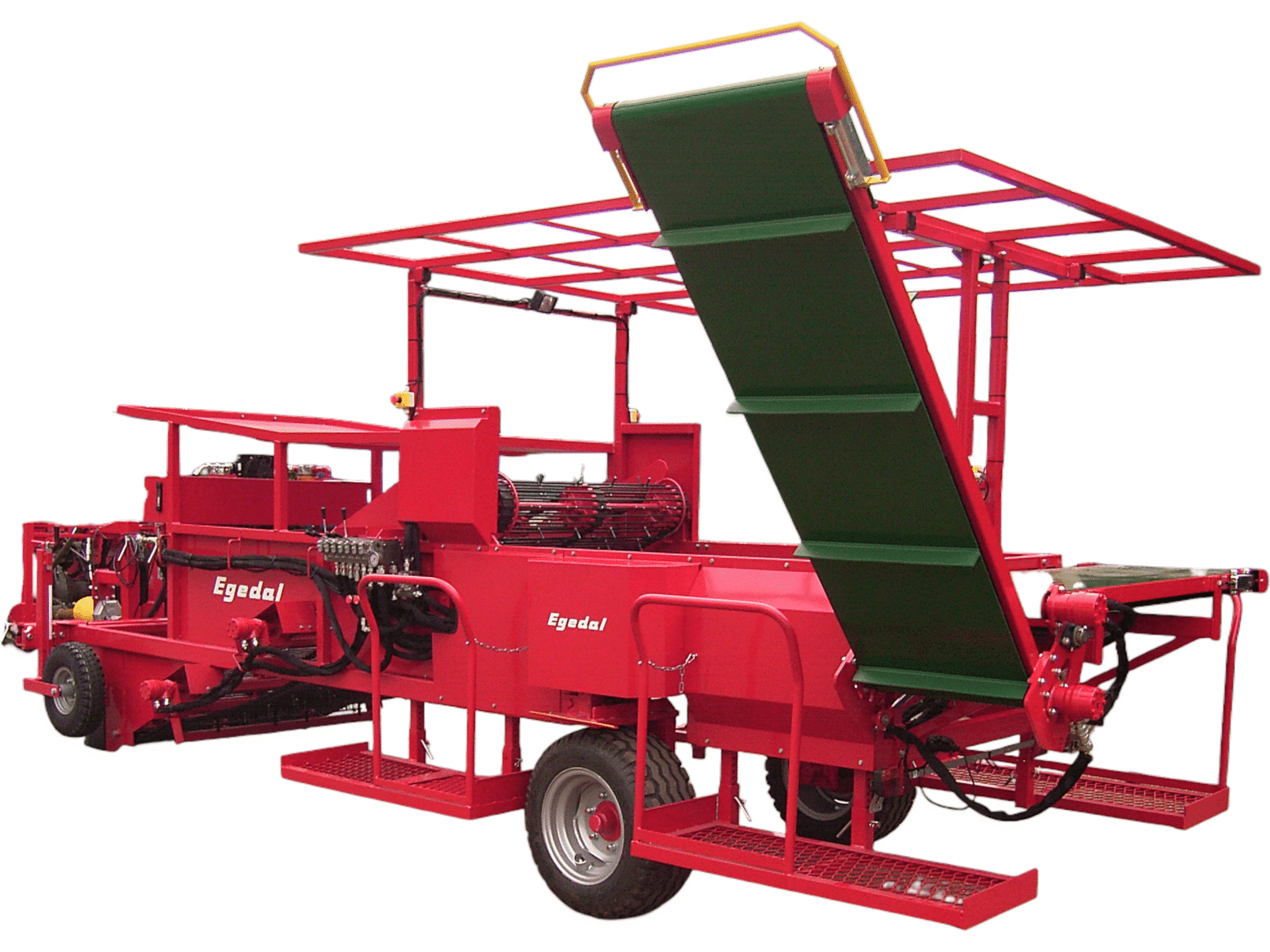

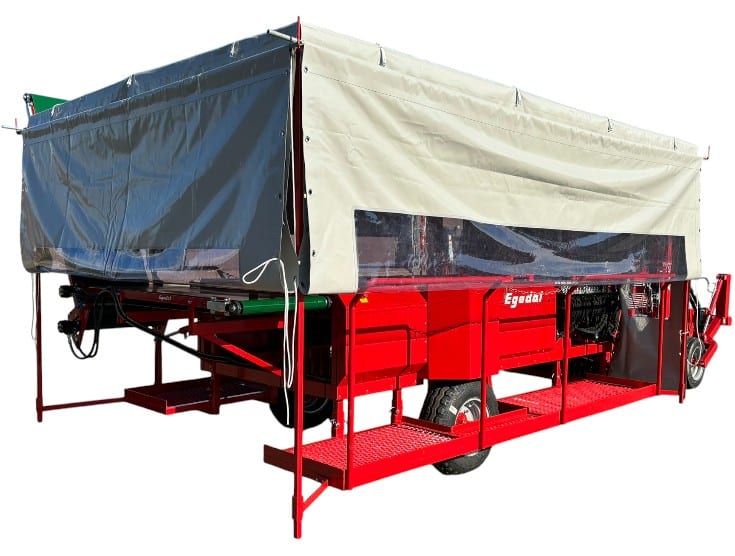

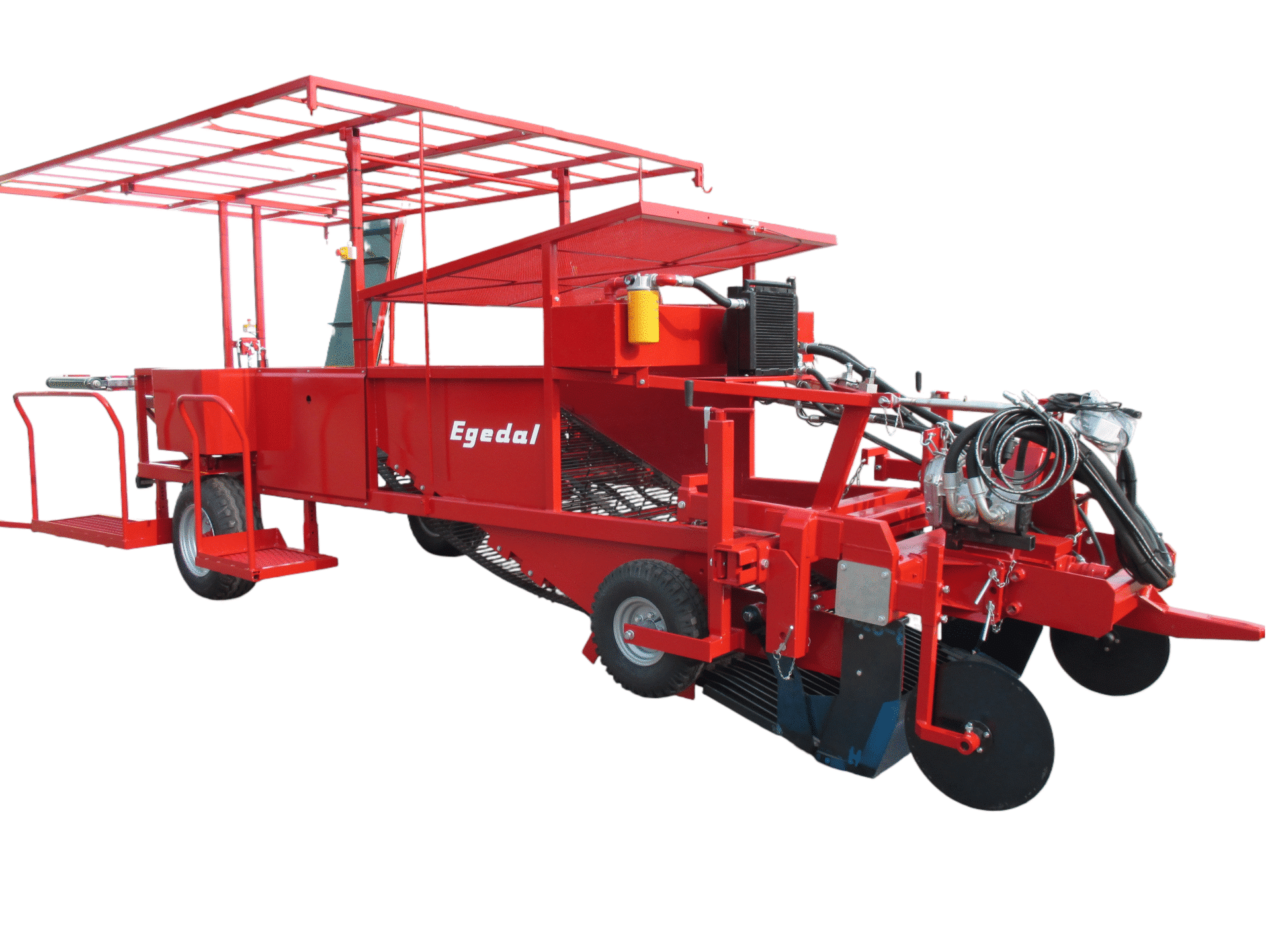

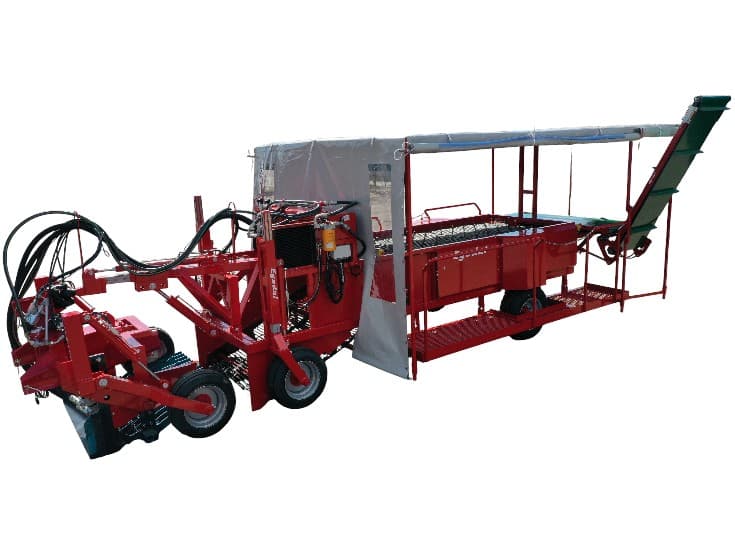

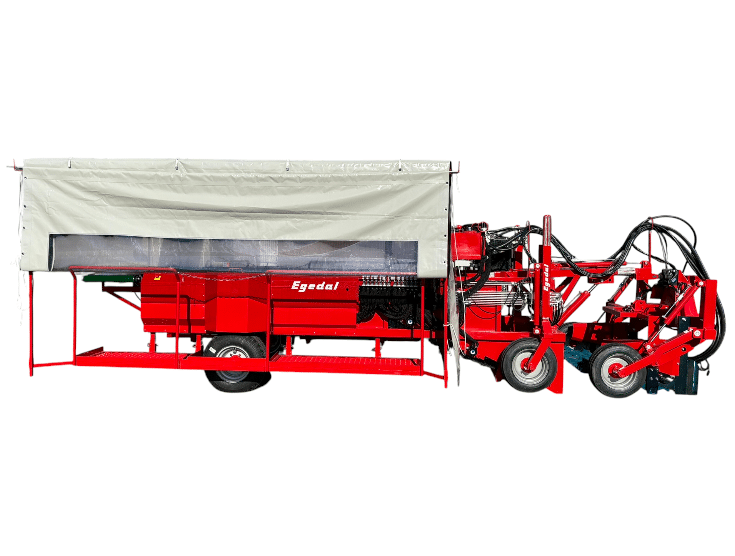

Bed Lifter Type P.S
Type: P.S
Designed for lifting nearly all types of nursery plants. The P.S. bed lifter is equipped with a front-mounted shaker lifter, making it suitable for harvesting in various conditions. Features high capacity, ergonomic upright working position, and steerable support wheels. Tractor-towed.
The Egedal Bed Lifter Type P.S. is designed for efficient and rational plant lifting, making it ideal for most types of plants grown in rows or beds. With working widths of 120, 130, and 150 cm, the entire bed can be lifted in a single pass, enhancing productivity.
The machine provides operators with an upright working position, contributing to increased comfort during operation. Its high capacity ensures a significant quantity of plants can be harvested in a short time.
All machine functions are hydraulic and powered by the machine’s own hydraulic system. This ensures reliable, efficient operation and quick adjustment to varying working conditions.
Equipped with steerable support wheels, the bed lifter offers excellent maneuverability in narrow headlands and similar areas. Additionally, a protective superstructure for plants and personnel is included as standard, ensuring safety during operation.
| Working width |
|---|
| 1200 / 1300 / 1500 mm |
| Working depth |
|---|
| Max. 280 mm |
| Width |
|---|
| 2560 mm |
| Length |
|---|
| 8000 mm |
| Track width |
|---|
| 1500 / 1600 / 1800 mm |
| Weight |
|---|
| 1920 kg |
| Power requirement |
|---|
| From 75 KW |
Pallet lift
Conveyor belt for parallel running trolleys
